Welded Wire Mesh Fencing Panels

  • Welded Wire Mesh Fencing Panels
  • Welded Wire Mesh Fencing Panels
  • Welded Wire Mesh Fencing Panels
  • Welded Wire Mesh Fencing Panels
Tempat asal Anping dari Tiongkok
Nama merek QIANPU
Sertifikasi ISO
Kuantitas min Order 50 gulungan
Harga negotiable
Kemasan rincian Di dalam dengan tabung kertas, di luar dengan film plastik atau kertas tahan air, lalu di kotak kayu
Waktu pengiriman 20 Hari
Syarat-syarat pembayaran T/T, L/C, Western Union
Detail produk
Nama Produk ss kawat las mesh Bahan SS304 atau SS316
Bentuk lubang Lubang persegi ukuran pembukaan 6", 5", 4", 3", 2", 1", Dst
Ukuran Panel 3Ft× 6Ft, 4Ft × 8Ft, 5Ft × 106Ft, Dll. Ukuran Khusus. Diameter Kawat 1.2mm, dll
Menyoroti

welded wire mesh fencing panels

,

SS welded wire mesh panels

,

welded wire mesh fence with warranty
Tinggalkan pesan
Deskripsi Produk

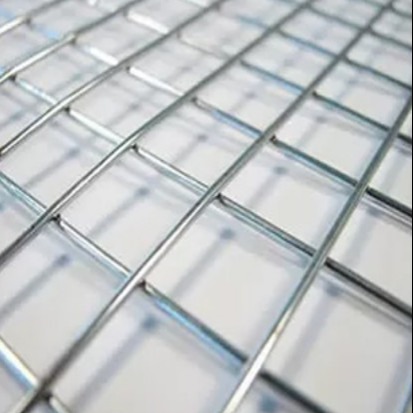

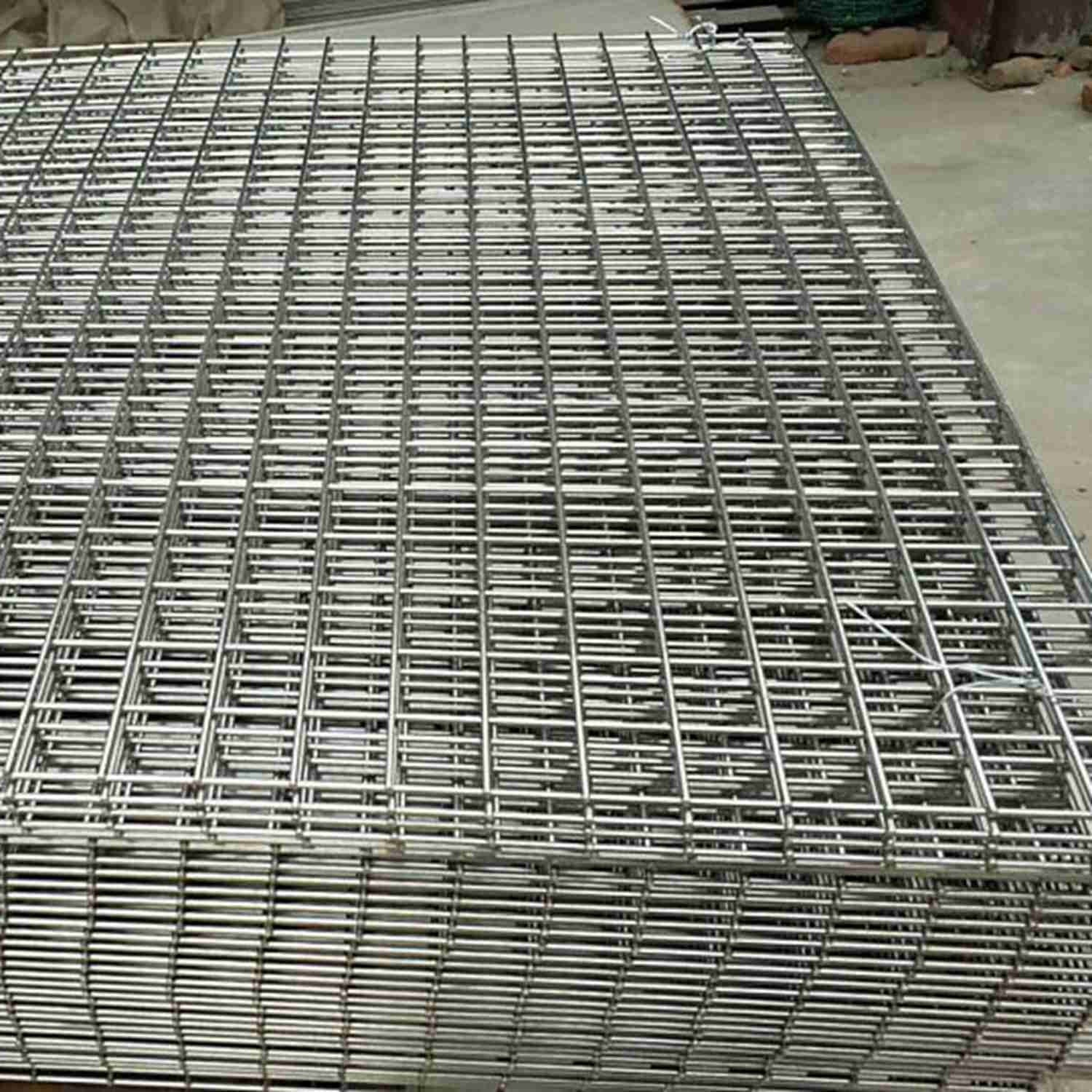

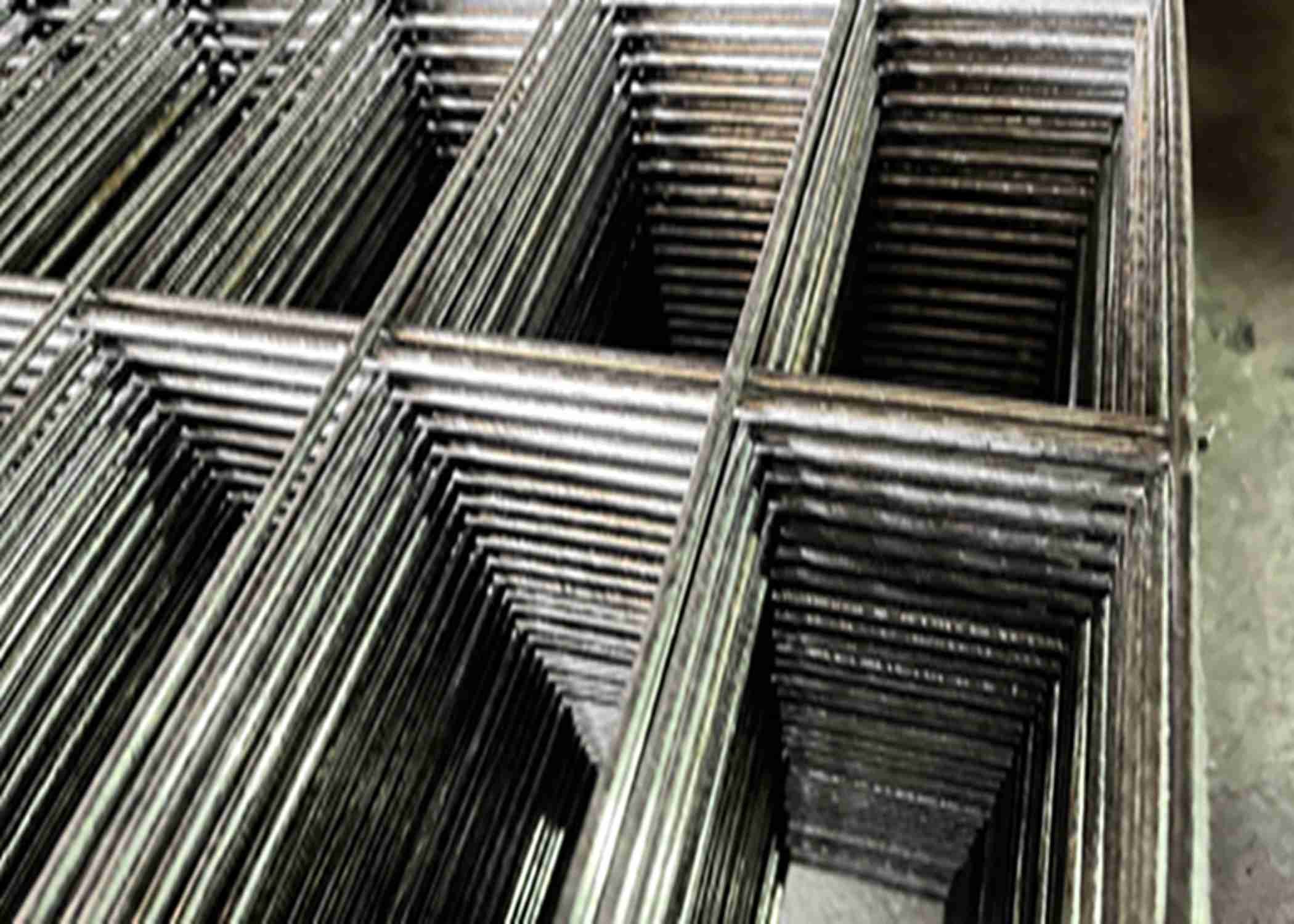

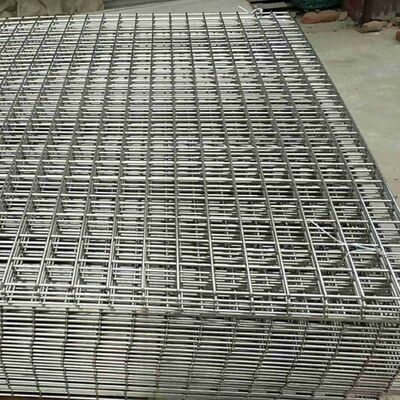

Welded wire mesh panels are products made of high-quality low-carbon steel wire (or stainless steel wire) through straightening and row welding processes. After surface treatments such as galvanizing and PVC coating, they feature stable structure, corrosion resistance, durability and convenient construction, serving as a fundamental material in construction, agriculture, industry and other fields.



Core Classification



Classification Dimension Specific Types Core Features
Material Low-carbon steel mesh panels Low cost, moderate strength, suitable for general protection and construction scenarios
  Stainless steel mesh panels (304/316L) Strong corrosion resistance, high temperature resistance, ideal for food, chemical and marine environments
Surface Treatment Electro-galvanizing (cold galvanizing) Low cost, thin zinc coating, suitable for indoor or short-term protection use
  Hot-dip galvanizing Thick zinc coating, excellent corrosion resistance, service life of ≥10 years, applicable to outdoor or harsh environments
  PVC dipping/spraying Rich color options (green, gray, blue, etc.), UV resistance, attractive appearance and durability
Application Construction mesh panels Reinforcing mesh, insulation mesh, floor heating mesh with relatively thin wire diameter (0.5-3mm)
  Protection mesh panels Fencing, guardrails, cages with medium wire diameter (2.5-5mm)
  Heavy-duty mesh panels (gabion mesh) Thick wire diameter (≥3mm), used for river slope protection and side slope reinforcement



Common Specifications



Mesh Size: 12.7×12.7mm (Insulation Mesh), 25.4×25.4mm, 50×50mm, 100×100mm, etc.
Wire Diameter: 0.5mm - 6.0mm (regular), up to 12mm or more for heavy-duty models
Panel Size: Standard 1×2m, customizable up to 3×6m


Main Applications



Construction engineering (core application field)
Agriculture & animal husbandry
Industry & municipal engineering
Water conservancy & environmental protection projects
Home decoration & daily use



Packing:



Each roll with polyfilm with water proof paper, outside wooden pallets.
