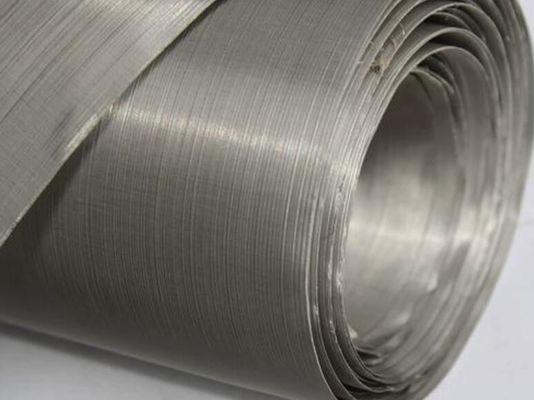

Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties

  • Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties
  • Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties
  • Stainless Steel Dutch Wire Mesh Designed for in Chemical Pharmaceutical and Food Industries Offering Filtration and Strength Properties
Tempat asal Anping dari Tiongkok
Nama merek QIANPU
Sertifikasi ISO
Kuantitas min Order 1 gulungan
Harga Negotiable according to quantity of order
Kemasan rincian <i>1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wo
Waktu pengiriman 20 hari
Syarat-syarat pembayaran T/T, L/C, Western Union
Menyediakan kemampuan 3000 gulungan per bulan
Detail produk
Nama Produk Wire Mesh Belanda Stainless Steel Bahan baja tahan karat 304 316
Hitungan Maks 325x2300 Lebar 0,1 hingga 2,0 m
Panjang 30m atau disesuaikan Pola tenun Belanda Polos, Belanda Kepar, Belanda Balik
Fitur tahan aus, tahan panas, tahan asam dan tahan korosi.
Menyoroti

Stainless Steel Dutch Wire Mesh for filtration

,

Chemical pharmaceutical food industry wire mesh

,

Stainless Steel Dutch Wire Mesh with strength
Tinggalkan pesan
Deskripsi Produk

Introduction:

Twill Dutch weave wire mesh is a type of woven wire mesh that combines characteristics of twill weave and Dutch weave patterns. In this weave, the weft wires pass alternately over and under two warp wires, creating a diagonal pattern similar to twill weave. However, the warp wires are much thicker and spaced further apart than the weft wires, which is a characteristic of Dutch weave.

This combination results in a mesh with a tight filtration surface and excellent strength properties. Twill Dutch weave wire mesh is often used in applications that require fine filtration with high mechanical stability, such as in the chemical, pharmaceutical, and food processing industries.

Wire Materials:

SUS302, 304, 316, 304L, 316L.

Weaving Patterns:

Plain dutch, twill duth, reverse dutch, five heddle.

Packing:

stainless steel mesh made in small rolls,outside wooden cases.


Applications:



Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry, medicine, petroleum, telecommunication, scientific research units and so on.



Plain Dutch Weave Details sheet:

Mesh Warp×Weft Aperture Size Available Thickness
(mesh/inch) (mm) (um) Area(%) (mm)
Warp×Weft
20×150 0.45×0.355 101 7.5 1.16
20×200 0.355×0.28 118 12.1 0.915
20×250 0.25×0.15 120 17 0.71
20×270 0.25×0.20 119 17.6 0.65
24×300 0.28×0.18 110 19.6 0.64
30×270 0.28×0.20 77 11.2 0.68
30×300 0.25×0.18 38
30×340 0.28×0.16 89 17.9 0.6
30×360 0.25×0.15
40×430 0.18×0.125 63 15.4 0.43
40×540 0.18×0.10 70 23.5 0.38
50×500 0.14×0.11 47 12 0.364
50×600 0.125×0.09 51 17.2 0.305
65×600 0.14×0.09 36 12 0.32
70×600 0.14×0.09 31 10.1 0.32
78×680 0.112×0.08 29 10.3 0.272
78×760 0.112×0.071 31 13.5 0.254
80×680 0.112×0.08 28 9.8 0.272
80×700 0.11×0.08 - - -
90×760 0.10×0.071 24 9.6 0.242
90×780 0.11×0.07 - - -
90×850 0.10×0.063 26 12.7 0.226
100×760 0.10×0.071 20 7.4 0.242
100×850 0.10×0.063 22 10 0.226
130×1100 0.071×0.05 17 9.4 0.171
130×1200 0.071×0.045 18 12 0.161
130×1500 0.063×0.036 21 18.6 0.135
150×1400 0.063×0.04 15 11.4 0.143
160×1500 0.063×0.036 15 12.4 0.135
165×800 0.07×0.05 - - -
165×1400 0.063×0.04 13 8.8 -
165×1500 0.063×0.036 14 11.4 0.135
174×1400 0.063×0.04 11 7.4 0.143
174×1700 0.063×0.032 13 12.9 0.127
203×1500 0.056×0.036 9 6 -
203×1600 0.05×0.032 10 9.3 0.114
216×1800 0.045×0.03 - 9 0.105
250×1600 0.05×0.032 - 4 -
250×1900 0.04×0.028 8 8 -
285×2100 0.036×0.025 7 7.2 -
300×2100 0.036×0.025 6 6 -
317×2100 0.036×0.025 5 5 -
325×2300 0.036×0.024 4 4 -
Note: Absolute filter values above should be taken as just rough estimations.
